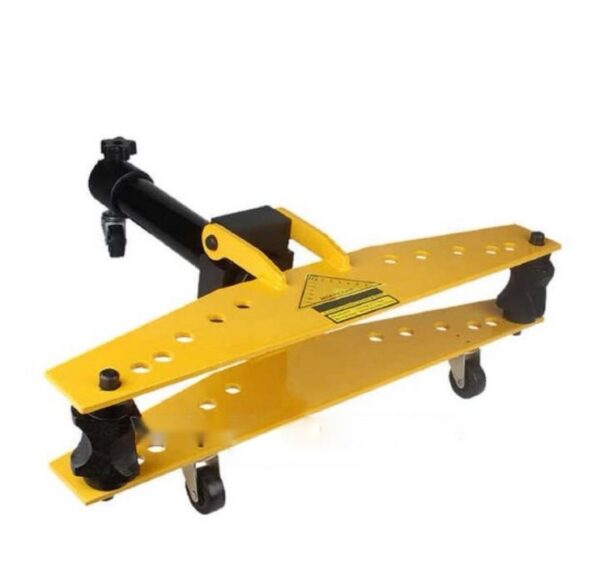

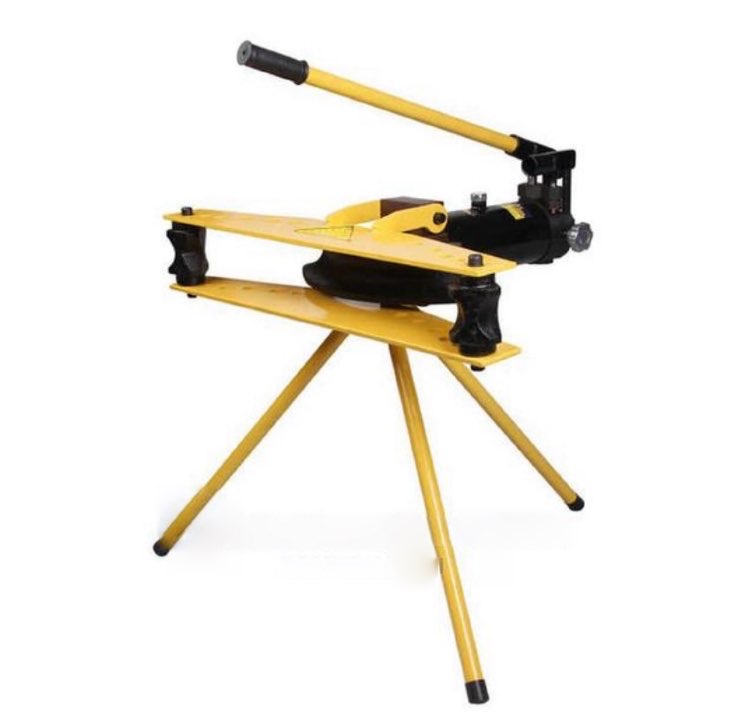

Hydraulic Pipe and Tube Bending Machine

Available models include HHW-2J, HHW-3J, and HHW-4J, with output capacities of 13T, 20T, and 20T respectively.
Specifications:
– Stroke (mm): Call
– Bending Range (mm):
– HHW-2J: 21.3-60 mm
– HHW-3J: 21.3-88.5 mm
– HHW-4J: 21.3-108 mm
– Maximum Bending Angle: 90°
– Wall Thickness Range: 2.5-4mm
– Pump Working Pressure: 20-700 Bar
– Configuration: Mold
Pump Size Options:
– HHW-2J: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″
– HHW-3J: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″
– HHW-4J: 1/2″, 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″, 4″
Additional Details:
– Weight:
– HHW-2J: 53 kgs
– HHW-3J: 117 kgs
– HHW-4J: 200 kgs
– Size:
– HHW-2J: 73*32*20 cm
– HHW-3J: 94*40*23 cm
– HHW-4J: 118*43*25 mm
– Suitable Material: Galvanized Tube, Welded Pipe, Seamless Steel Pipe, Guide Wire

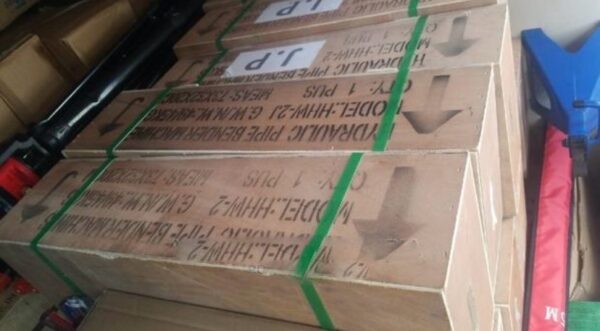

– Packaging: 1 Set per Wooden Box/CTN
– Minimum Order Quantity (MOQ): 1 Set
